Hook type standard forklift forks with ISO/CE certificate
Hook type standard forklift forks with ISO/CE certificate
Hook type standard forklift forks with ISO/CE certificate
Hook type standard forklift forks with ISO/CE certificate
Hook type standard forklift forks with ISO/CE certificate

Hook type standard forklift forks with ISO/CE certificate

Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 2 Piece/Pieces
Delivery Time: 25 Days

Contact Now Add to Basket

Basic Info

    Model No.: class 2A

Additional Info

    Packaging:  seaworthy steel pallets

    Productivity: 300000 pieces/year

    Brand: Techence

    Transportation: Ocean

    Place of Origin: Jinan city, Shandong province, China

    Supply Ability: 250000 pieces/month

    Certificate: ISO/CE certificate

    HS Code: 84312090

    Port: Qingdao

Product Description

Hook type standard forklift forks;

Load capacity 1ton-8ton;

Material is 40Cr/15B37, they could be produced in any length;

We had passed ISO 9001, with high quality and low price.

hook type forks

Standard forklift forks specification:

Load capacity Size(T*W mm) Material Height (mm) Length
1T
2A 32*100
40Cr
540
any length you want
1.5T
2A 35*100
40Cr
540
any length you want
2.5T 3A 45*100 40Cr 655 any length you want
3T 3A 45*122 40Cr 655 any length you want
3.5T-4T 3A 50*122 40Cr 655 any length you want
4.5T 3A 50*150 40Cr 655 any length you want
5T 4A 50*150 15B37 845 any length you want
6T 4A 60*150 15B37 845 any length you want
7T 4A 65*150 15B37 845 any lenght you want
8T 4A 75*150 15B37 845 any length you want

Cross Section Size: 25x76mm; 50x50mm; 32x100mm... 250x500mm, Length from 600mm to 4500mm.

(Note: these are some part of the specification we could produce, not all)

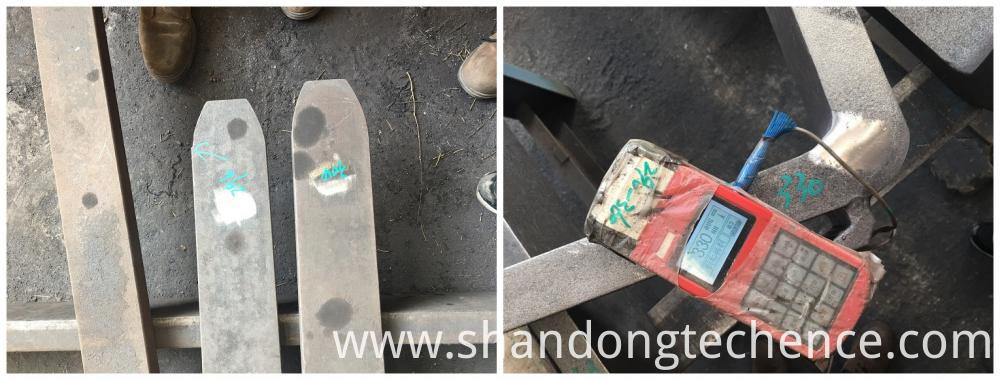

Product Inspection:

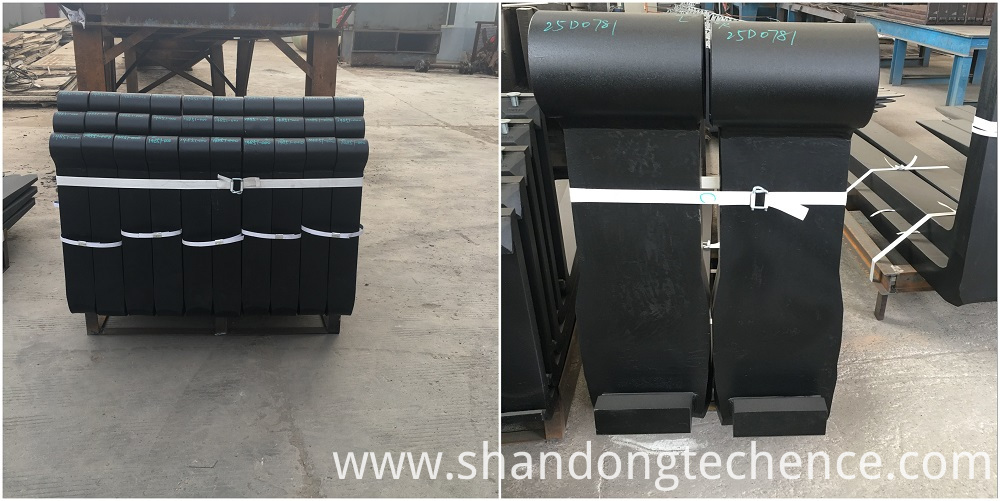

Hook Type Forks

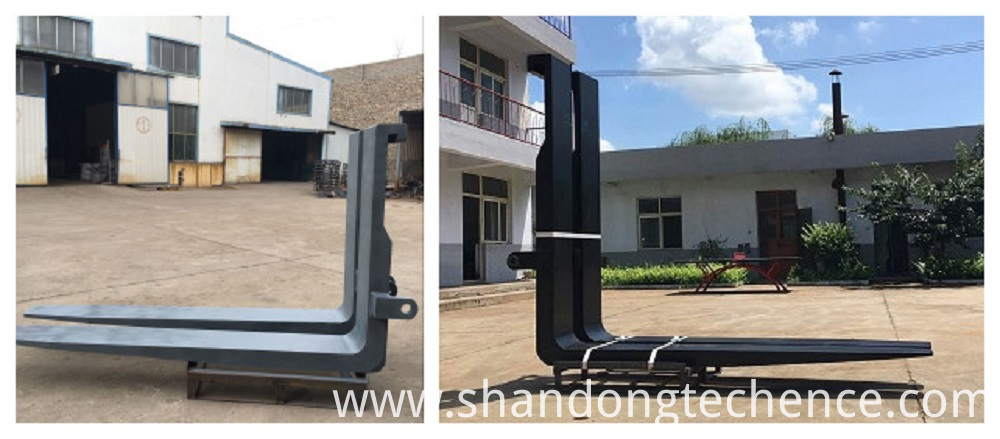

Product Details:

Standard Forks

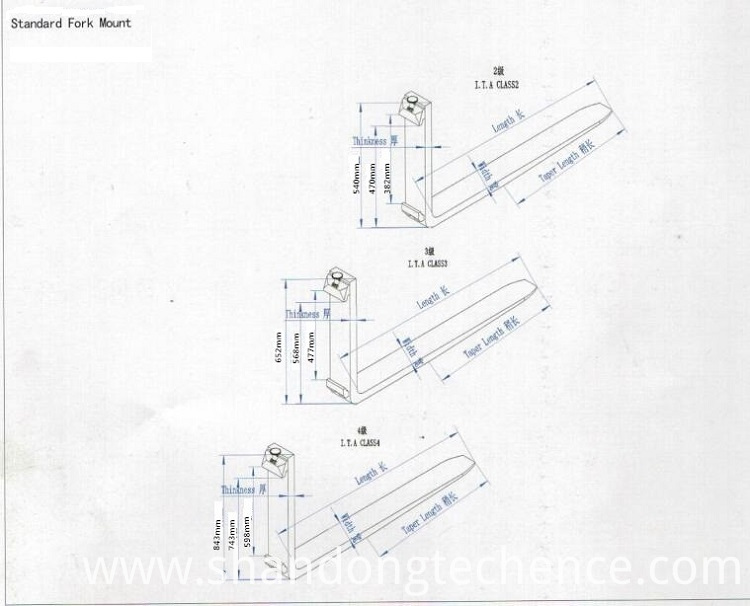

Standard fork mount:

Standard Forks Installation


Technology and quality:

General:

1. Raw Material: Purchased from entrusted supplier with third party inspection.
2. Experienced technicians and workers with regular training to keep stable quality.
3. ISO 2328 and ISO2330 standard production process and fully heat-treated.

4. 3 times static overload testing

Fork Body: 15B37, 33MnCrTiB, 42CrMo, 40Cr

Hanger:20Cr


Chemical Composition:

Material No.
C%
Si%
Mn%
Cr%
Mo%
15B37
0.30~0.35
0.15~0.35
1.25~1.50
0.30~0.60

33MnCrTiB
0.30~0.35
0.15~0.35
1.25~1.50
0.30~0.60

40Cr
0.37~0.45
0.20~0.40
0.50~0.80
0.80~1.10

42CrMo
0.38~0.45
0.20~0.40
0.50~0.80
0.90~1.20
0.15~0.25
20Cr
0.17~0.24
0.17~0.37
0.50~0.80
0.70~1.0

20#
0.17~0.24
0.17~0.37
0.35~0.65
0.25

Welding: with Ar+CO2 protection

Mechanical Properties:

Material No. Yield Strength(σb) Tensile strength(σb) Impact(-20° C-V) Surface hardness
15B37 ≥784Mpa ≥931Mpa ≥27J HB 285~363
33MnCrTiB ≥784Mpa ≥931Mpa ≥27J HB 285~363
40Cr ≥785Mpa ≥981Mpa ≥27J HB 285~363
42CrMo ≥932Mpa ≥1079Mpa ≥27J HB 285~363
35CrMo ≥834Mpa ≥981Mpa ≥27J HB 285~363

Crack detection must be done for every fork after shot blasting.

Producing standard: ISO 2328
Inspection standard: ISO2330/2002
Painting:Black or as requested.

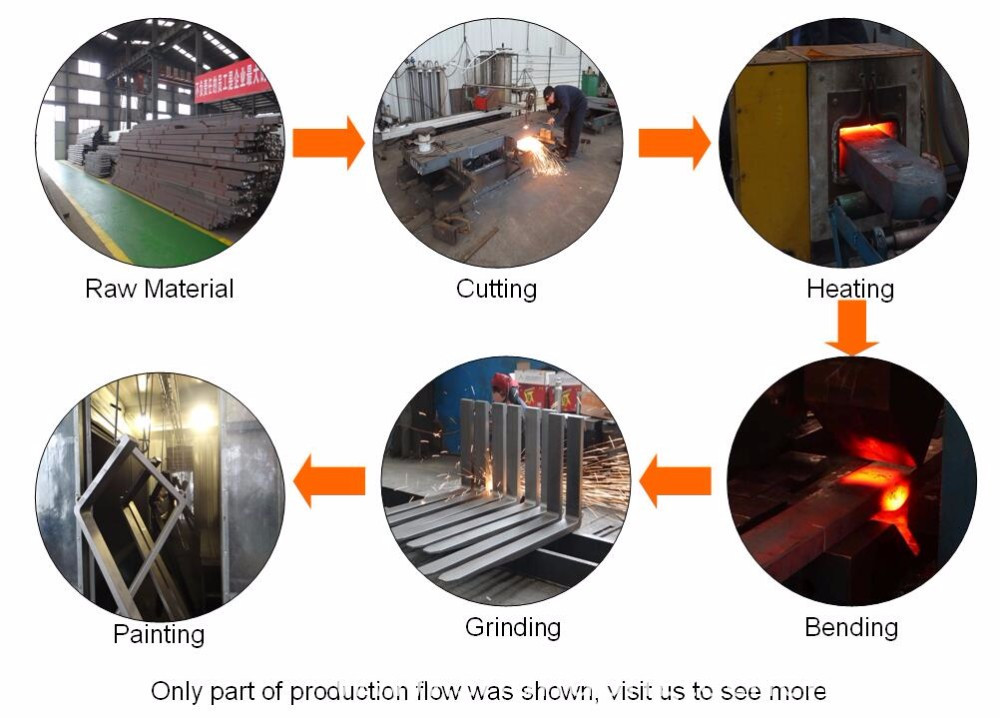

Production Flow:

Used Forklift Forks


Different type of forklift forks we could produce:

Blank Type forklift forks:

Hook Type Forklift Forks

Shaft type forklift forks:

Standard Forklift Forks

Port Forklift Forks:

Hook Type Forklift Forks

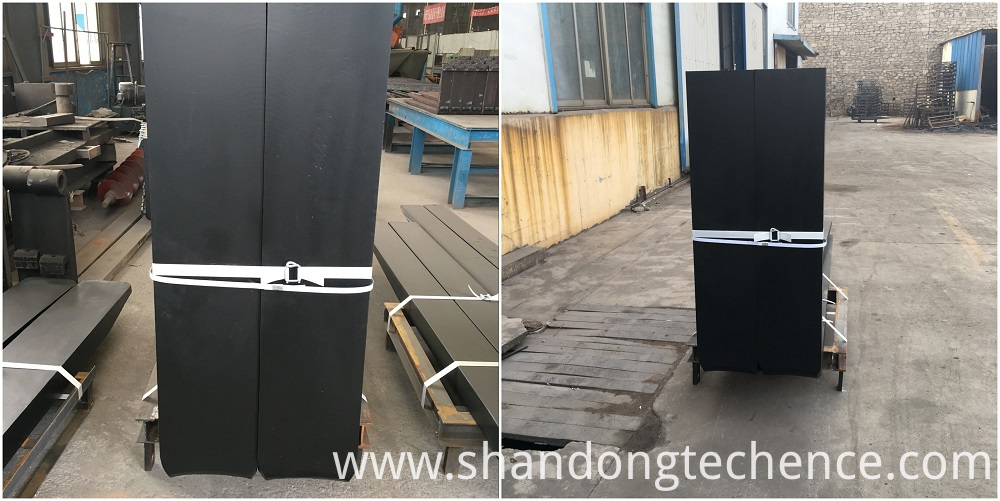

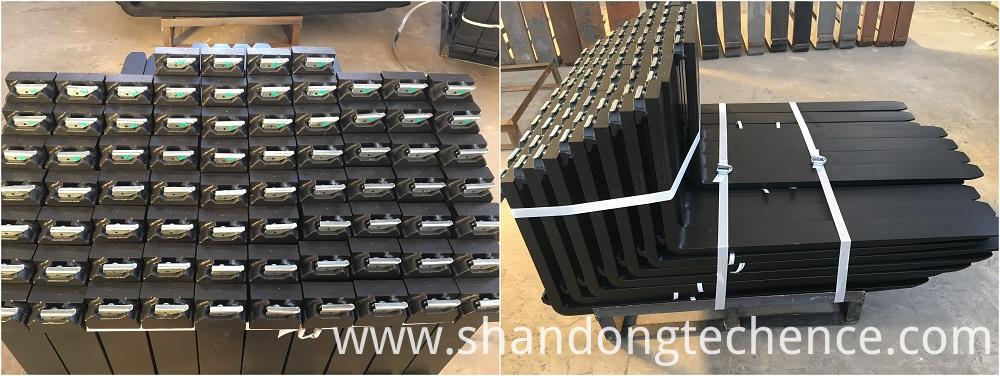

Packaging and shipping:

Packing on seaworthy steel pallets.

Plastic Wrap can be choose

2.5 ton max per pallet


Hook type standard forklift forks with ISO/CE certificate

Used Forklift Forks

Our Advantage:

1. 13 years of forklift forks manufacturing experience.

2. Competitive Price.

3.100% quality inspection.

4.Thicker Heel.

5.CE Certificate.

6. All size available.

7.OEM available.

Certification:

Hook Type Forklift Forks

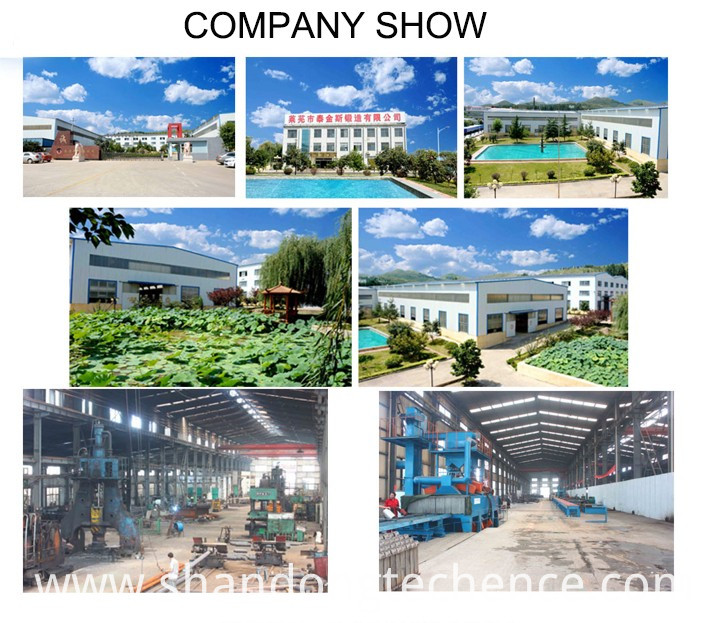

Company introduction:

1. Have 4 production lines,3 section bar lines and a forging line

2. Able to produce over 300,000 pcs of high quality forks annual.

3. Products include but not limited to Standard Forks, Shaft/ Pin type forks, Heavy Duty Forks, 20- 46MT Port Fork (Container Forklift Fork), 20-60 ton Mining Fork, Loading Fork, Farm Fork, Stone Fork (Patent), folding fork etc.. Forklift attachments we have: Rotator, side shift, fork carrier, bale clamp, fork arm extensions, etc..
4. Main Equipment: 3T & 5T electro-hydraulic hammer, 800T & 500T hydraulic press machine, straighten machine, shot blast cleaning machine, flame cutting machine, linear cutting machine etc..

Some of the Equipments:

Hook Type Forklift Forks

FAQ:

Q: What is your delivery time?

A: Within 10 days production time for small forks, and 20 days for Heavy Duty forks.

Q: What is the MOQ of your company?

A: 10 pcs or $1,000.00 amount.

Q: What is the acceptable payment term?

A: T/T or L/C, purchase on Alibaba is prefered.

Q: How about your quality and quality inspection?

A: Our QA department do 100% inspection, on every process.

Q: Does OEM available?

A: Yes, OEM is OK for us.

Hook Type Forklift Forks

More KInds of Products of Forklilft Parts:
